New order for Crealet’s warp feed system

The first 'Linked Motion Control' warp feed system from Crealet will be delivered to Inobelt in Germany.

10th May 2019

Innovation in Textiles
 |  Eschenbach

Industrial, Protective

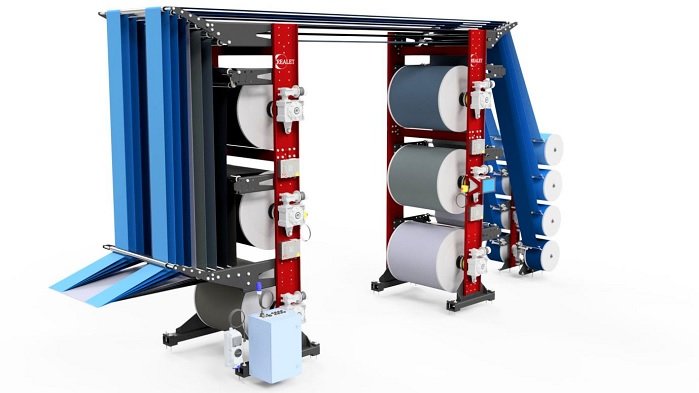

Plug and Play Warp Beam Frame. © Crealet

The first Linked Motion Control warp feed system from Crealet, a leading provider of electronic warp let-off systems, will be delivered to Inobelt in Germany. Inobelt, a specialist in the area of weaving preparation, weaving, braiding and making up, produces high-quality belts, tapes, cords and ropes for personal protective equipment, technical applications and roller shutter belts.

These are produced according to customer requirements and technical specifications. Inobelt also develops new products together with its customers. The reason for purchasing the new warp thread feeding system was the increased demand for Inobelt products, the company reports.

Linked Motion Control is a warp feed system consisting of several warp beams and a PC-based control technology. “The warp running time can be doubled by using 14 warp beams,” the manufacturer explains. “It massively reduces the frequency of warp beam changes and increases the efficiency of the ribbon weaving machine.”

The directly measured yarn tension replaces the adjustment of the warp tension by means of springs. Moreover, the desired warp tension for each beam can be entered directly into the control system. The direct measurement of the warp tension serves to control the warp beam motors and enables to display the set and actual thread tension on the monitor.

“We are proud to be able to supply this new warp feed system to a long-time customer in Germany for the first time. The warp feed system is designed for the current technical requirements but is also intended for future applications in the field of Industry 4.0,” the company added. “With this investment, Inobelt is taking a giant step into the future.”

www.crealet.com
