Researchers print flexible silver nanowire circuits

The new technique makes it possible to integrate the material into a wide array of electronic devices.

12th March 2018

Innovation in Textiles
 |  Raleigh, NC

Medical/Hygiene, Sports/​Outdoor, Industrial

Researchers at North Carolina State University have developed a new technique that allows them to print circuits on flexible, stretchable substrates using silver nanowires. The advance makes it possible to integrate the material into a wide array of electronic devices, according to the team of researchers.

Silver nanowires have drawn significant interest in recent years for use in many applications, ranging from prosthetic devices to wearable health sensors, due to their flexibility, stretchability and conductive properties. While proof-of-concept experiments have been promising, there have been significant challenges to printing highly integrated circuits using silver nanowires.

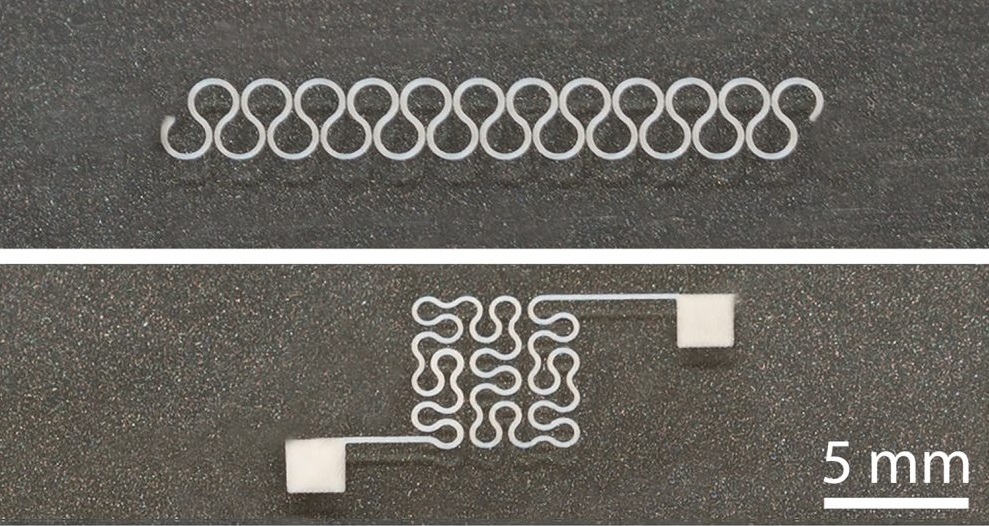

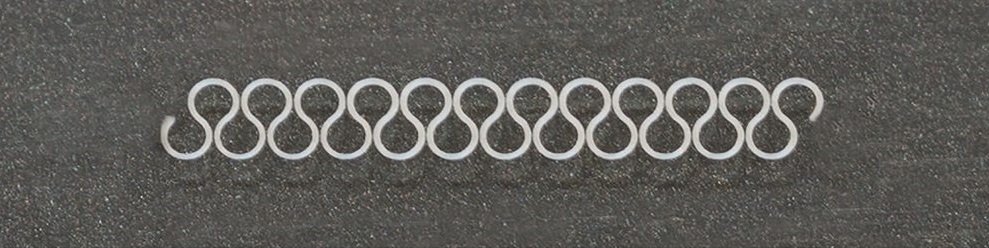

Two printed silver nanowire patterns, horseshoe and Peano curve, with high resolution. © North Carolina State University

Silver nanoparticles can be used to print circuits, but the nanoparticles produce circuits that are more brittle and less conductive than silver nanowires. But conventional techniques for printing circuits don’t work well with silver nanowires; the nanowires often clog the printing nozzles.

“Our approach uses electrohydrodynamic printing, which relies on electrostatic force to eject the ink from the nozzle and draw it to the appropriate site on the substrate,” explained Jingyan Dong, co-corresponding author of a paper on the work and an associate professor in NC State’s Edward P. Fitts Department of Industrial & Systems Engineering. “This approach allows us to use a very wide nozzle – which prevents clogging – while retaining very fine printing resolution.”

“And because our ink consists of a solvent containing silver nanowires that are typically more than 20 micrometres long, the resulting circuits have the desired conductivity, flexibility and stretchability,” said Yong Zhu, a professor of mechanical engineering at NC State and co-corresponding author of the paper.

“In addition, the solvent we use is both nontoxic and water-soluble,” added Zheng Cui, a PhD student at NC State and lead author of the paper. “Once the circuit is printed, the solvent can simply be washed off.”

In addition, the size of the printing area is limited only by the size of the printer, meaning the technique could be easily scaled up.

The researchers have used the new technique to create prototypes that make use of the silver nanowire circuits, including a glove with an internal heater and a wearable electrode for use in electrocardiography. NC State has filed a provisional patent on the technique.

“Given the technique’s efficiency, direct writing capability, and scalability, we’re optimistic that this can be used to advance the development of flexible, stretchable electronics using silver nanowires – making these devices practical from a manufacturing perspective,” said Yong Zhu.
